Maryland Bridge

Understanding the Anatomy and Design of Maryland Bridges

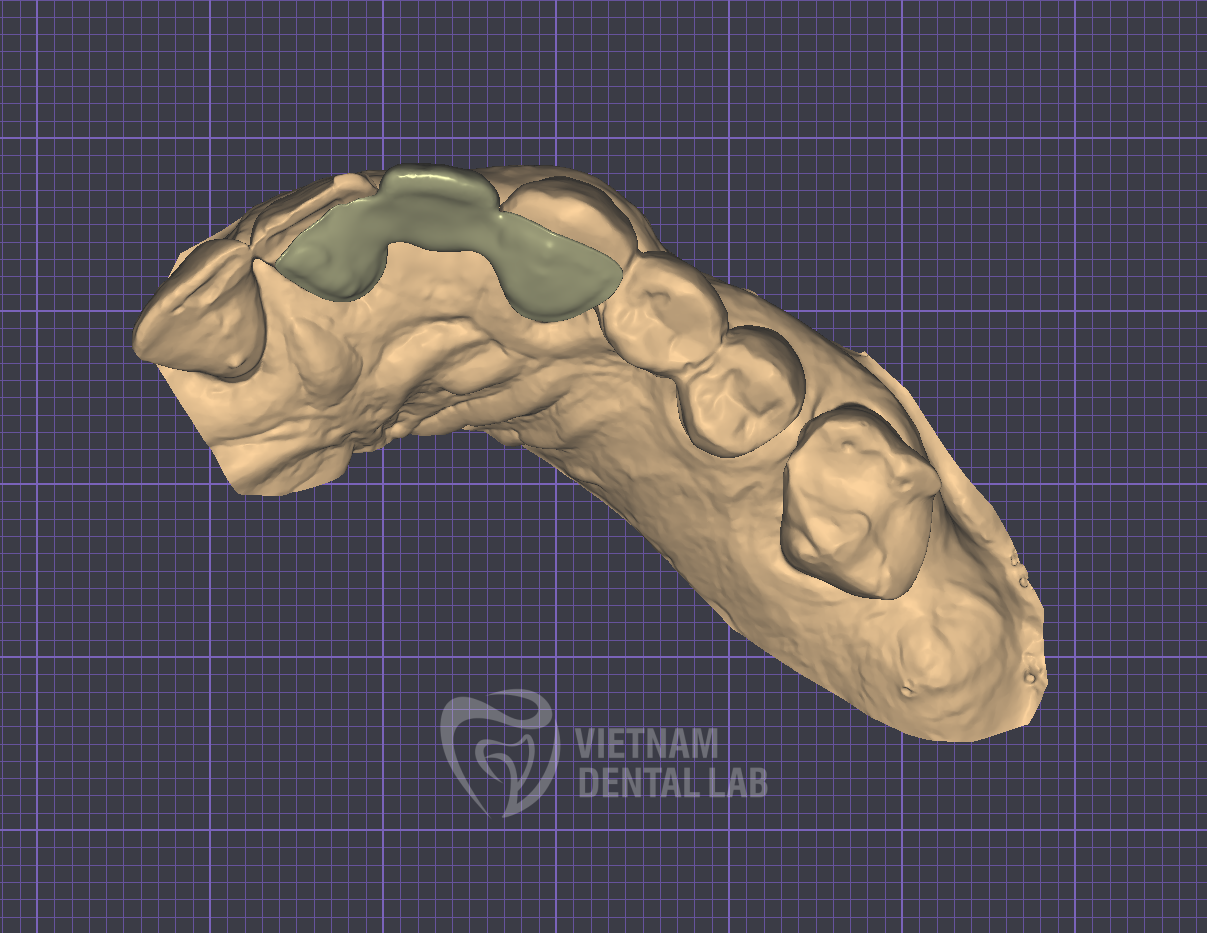

A Maryland bridge is a fixed prosthetic dental device that uses wing-like extensions, often made of metal, to anchor it to the adjacent healthy teeth. These extensions, or retainers, are bonded to the inner surfaces of the abutment teeth, the teeth on either side of the gap. The pontic, which is the artificial tooth that replaces the missing one, is attached to these retainers, completing the bridge structure.

The construction of a Maryland bridge incorporates a variety of materials, each playing a crucial role in its functionality and aesthetics. The metal retainers are typically made of alloys like gold or stainless steel, but can also be composed of base metal alloys. They provide strength and durability, securely attaching the bridge to the abutment teeth. The pontic, the artificial tooth, can be crafted from porcelain or composite resin. Porcelain yields a more natural appearance and can be matched to the color of the surrounding teeth, while composite resin is a more economical option and can also be shade-matched. A special dental adhesive, known as a bonding resin, is used to secure the retainers to the prepared abutment teeth and to attach the pontic to the retainers.

The Placement Process: Step-by-Step Guidance

The process of placing a Maryland bridge typically takes place over a few appointments:

1. Initial Consultation and Examination: The dentist examines the patient’s mouth, assesses the condition of the surrounding teeth, and discusses the suitability of a Maryland bridge for the specific case.

2. Preparation of Abutment Teeth: Minimal tooth preparation is involved. The dentist gently etches the inside surfaces of the abutment teeth, creating a slight roughness to enhance the bonding surface for the retainers.

3. Impressions and Bite Registration: The dentist takes impressions of the teeth and records the patient’s bite. These impressions are sent to the dental laboratory, where the bridge is fabricated.

4. Temporary Bridge Placement (Optional): A temporary bridge might be placed to protect the exposed teeth while the permanent bridge is being created.

5. Permanent Bridge Cementation: Once the Maryland bridge is fabricated and received from the dental lab, the dentist cleans and prepares the abutment teeth. A bonding agent is applied, followed by the cementation of the Maryland bridge to the prepared surface.

6. Follow-up Appointments: Regular check-ups are essential to ensure the bridge is functioning properly and the bonding remains intact.

Advantages of Maryland Bridges

Maryland bridges offer several benefits, making them a compelling option for many patients:

1. Minimally Invasive: Unlike traditional bridges, Maryland bridges require minimal tooth preparation. This preserves more tooth structure and reduces the risk of future complications.
2. Aesthetically Pleasing: The use of porcelain or resin for the pontic allows for a seamless integration into the natural dentition. It can be expertly shade-matched to the surrounding teeth, achieving a natural and aesthetically pleasing outcome.
3. Cost-Effective: Compared to other types of bridges, Maryland bridges are generally more affordable.
4. Faster Treatment Time: The reduced preparation and simpler design often lead to a quicker treatment timeline.
5. Easier to Maintain: Maryland bridges are typically easier to maintain than traditional bridges, as they have simpler designs and fewer crevices where food and plaque can accumulate.

Disadvantages and Limitations of Maryland Bridges

While Maryland bridges have many advantages, it’s important to acknowledge their limitations:

1. Not Suitable for All Cases: Patients with severely weakened or compromised abutment teeth, or those with a history of bruxism (teeth grinding), might not be ideal candidates for Maryland bridges.
2. Potential for Debonding: Although strong, the bond between the retainers and the abutment teeth can, in some cases, fail. This can be due to poor oral hygiene, excessive biting forces, or trauma.
3. Limited Strength and Durability: Compared to traditional bridges, Maryland bridges might not be as strong and durable, particularly when used in areas subject to significant pressure, such as the back teeth.
4. Aesthetic Limitations in Some Cases: While porcelain and resin pontics can achieve a natural appearance, they may not be ideal in all situations. Patients with existing dental restorations or significantly discolored teeth might find it challenging to perfectly match the color of the pontic.
5. Difficult to Repair: If the bridge becomes damaged or needs repair, it can be complex and time-consuming to restore.
